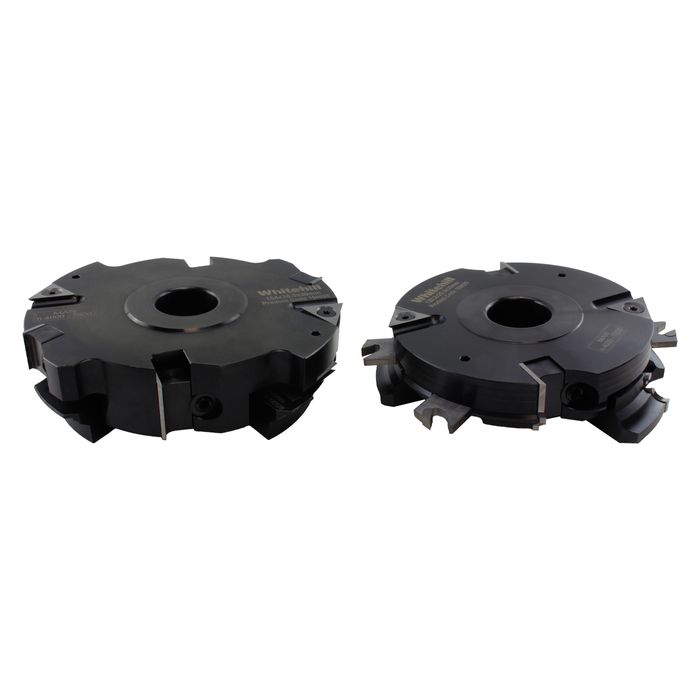

The Whitehill team have designed a set of four tools to make your life easier when manufacturing kitchen and cabinet doors on spindle moulders. This set includes two blocks to mould the wood with a groove, and another two blocks to scribe and tenon the wood in one pass. Making kitchen and cabinet door production simple and time efficient for busy workshops.

A key feature is that it’s constant height and diameter (Also known as “Zero Set Tooling”). This means once the spindle height and fence are set the next set of tooling can be placed on the spindle without any further adjustments, saving you time and the risk of mistakes.

Features:

• Available in 30mm and 1 ¼ inch bore sizes (more bore options available on request).
• “Zero Set Tooling” or Constant height and diameter to make tool changes fast and easy.
• Adjustable groove and tenons to match panel size to between 6 - 10.5mm.
• Wide range of door thickness: 22 - 33mm.
• Suitable for spindle moulders with manual feed.
• Block features replaceable tungsten carbide knives, all available from Whitehill.
• Blade can only be set in one position, providing reliable and accurate blade location each time they are replaced.
• All cutters are suitable for a majority of wood types including MDF, timber, hard & softwoods.
• Add-on upgrades are also available if you already own a specific set.

More Information:
https://www.whitehill-tools.com/cutter-heads/kitchen-door-sets/CBS032V5/
